Front Passenger Side
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION
.)
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION
.)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION
.)
- Disconnect the power window motor connector.

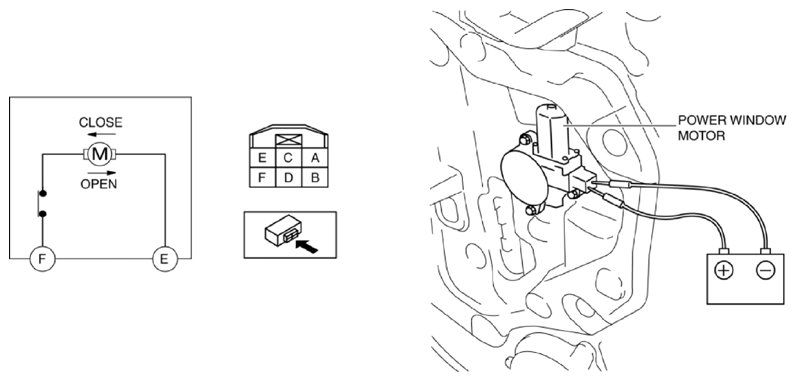

- Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.
Courtesy of MAZDA MOTORS CORP.
- If the power window motor does not operate as indicated in the
chart, replace it.
| Operation |
Terminal |
| E |
F |
| Close |
B+ |
Ground |
| Open |
Ground |
B+ |
