Power Window SUBSWITCH Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
  3. Verify that the continuity between the power window subswitch terminals is as indicated in the chart .

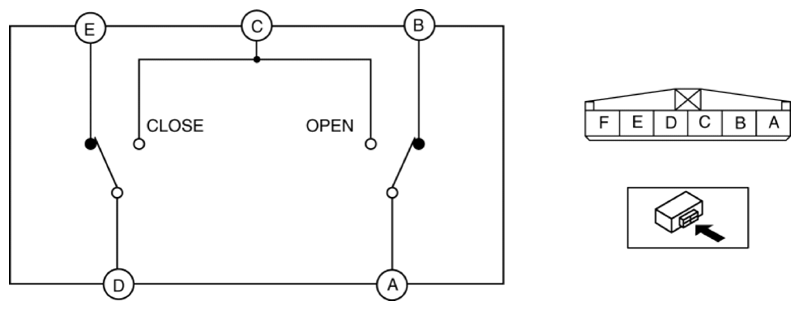

Fig 1: Power Window Subswitch Circuit Diagram
G10938453Courtesy of MAZDA MOTORS CORP.

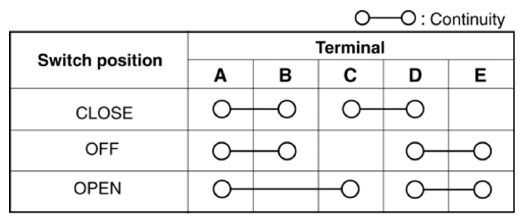

Fig 2: Power Window Subswitch Terminals Continuity Chart
G10938454Courtesy of MAZDA MOTORS CORP.
