Battery, Battery Box Removal Note
CAUTION:
- When removing the battery, do not place the battery on the PCM connector or hit it with the battery. Otherwise, the PCM or PCM connector could be damaged.

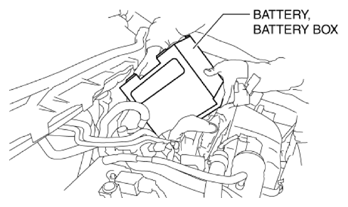

- Remove the battery with the battery box while the battery is positioned at an angle as shown in the figure.
