Continuity Inspection
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [C66MR] .)

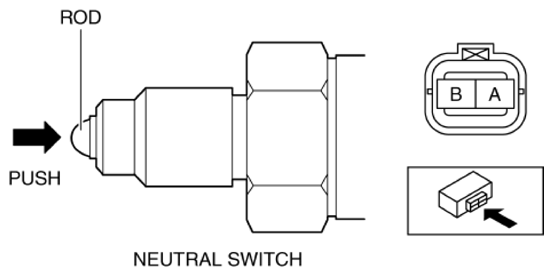

- Inspect for continuity between neutral switch terminal A and B.
Courtesy of MAZDA MOTORS CORP.
- If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [C66M-R] .)
NEUTRAL SWITCH TERMINAL CONTINUITY SPECIFICATION
| Measured condition | Continuity |
|---|---|
| Rod pushed | Continuity detected |
| Rod not pushed | No continuity |
