Rear Accessory Socket Inspection

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (RH) (Refer to TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (RH) (Refer to TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (RH) (Refer to REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Rear accessory socket (Refer to REAR ACCESSORY SOCKET REMOVAL/INSTALLATION .)

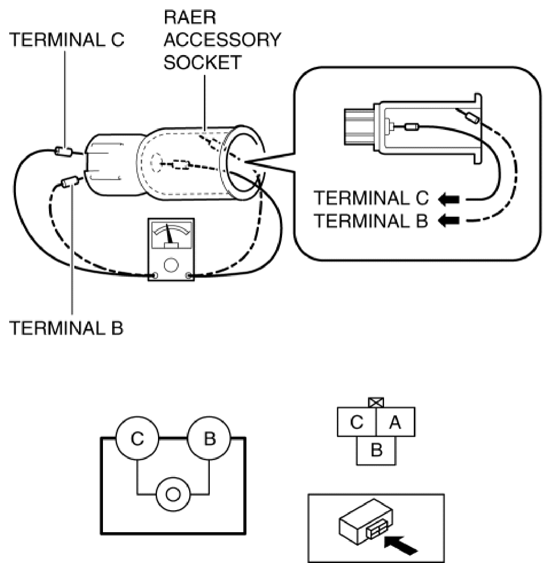

  3. Connect the tester probe to the position shown in the figure and verify that there is continuity.
    Fig 1: Connecting Tester Probe To Rear Accessory Socket
    G10950805Courtesy of MAZDA MOTORS CORP.
