Rearview Mirror Removal/Installation

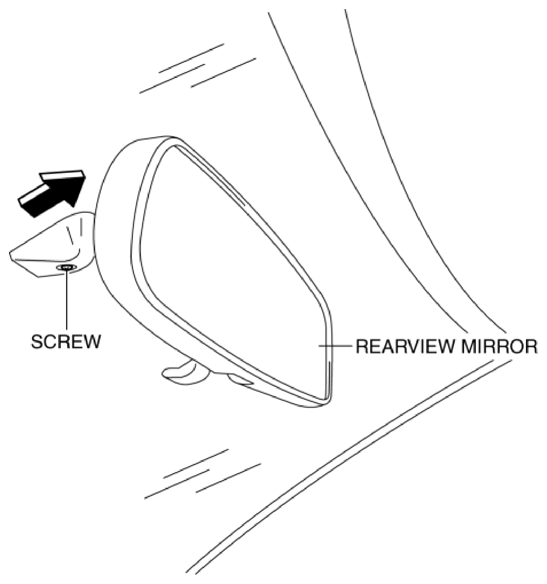

- Loosen the screw.
Courtesy of MAZDA MOTORS CORP.
- Pull the rearview mirror in the direction of the arrow shown in the figure.
- Install in the reverse order of removal.
