Rear Housing Installation Note
NOTE:
- After applying silicone sealant, install the rear housing within 10 min. and then tighten all bolts within 5 min.

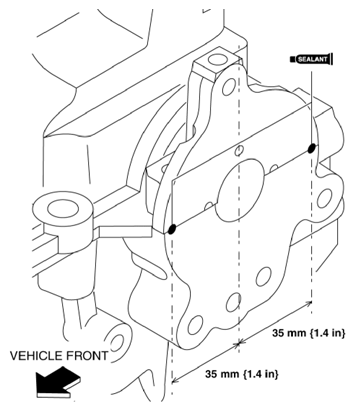

- Apply silicone sealant to the areas shown in the figure.
Thickness
- 3.0-7.0 mm {0.12-0.27 in}
- Install the rear housing.
Tightening torque
- 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
- Install the ECT sensor No. 1. (Refer to ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
- Install the exhaust CMP sensor. (Refer to CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
- Install the vacuum pump. (Refer to VACUUM PUMP REMOVAL/INSTALLATION .)
- Connect the turbocharger air outlet pipe to the dynamic pressure turbo. (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Install the battery tray. (Refer to BATTERY REMOVAL/INSTALLATION .)
