Ambient Temperature Sensor Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the seal board upper. (Refer to SEAL BOARD UPPER REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (Refer to FRONT BUMPER REMOVAL .) (Refer to FRONT BUMPER INSTALLATION .)
  4. Disconnect the connector.

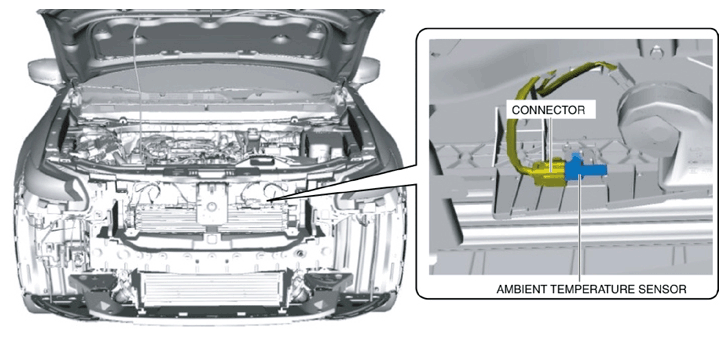

    Fig 1: Disconnecting Ambient Temperature Sensor Connector
    G10948515Courtesy of MAZDA MOTORS CORP.
  5. Remove the clip.

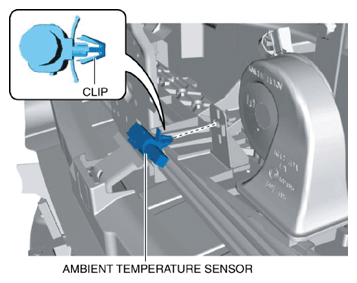

    Fig 2: Removing Ambient Temperature Sensor Clip
    G10948516Courtesy of MAZDA MOTORS CORP.
  6. Remove the ambient temperature sensor.
  7. Install in the reverse order of removal.
