Front Airflow Mode Actuator Installation: Notes

  1. Move the front airflow mode links to the positions shown in the figure.

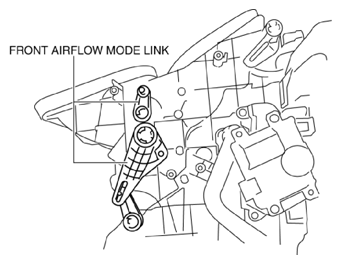

    Fig 1: Moving Front Airflow Mode Links To Position
    G10948497Courtesy of MAZDA MOTORS CORP.
  2. Install the airflow mode main link in the direction shown in the figure. (Refer to AIRFLOW MODE MAIN LINK INSTALLATION NOTE )

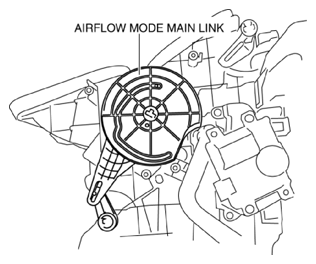

    Fig 2: Installing Airflow Mode Main Link
    G10948498Courtesy of MAZDA MOTORS CORP.
  3. Move the airflow mode main link in the direction shown in the figure and verify that it rotates smoothly.

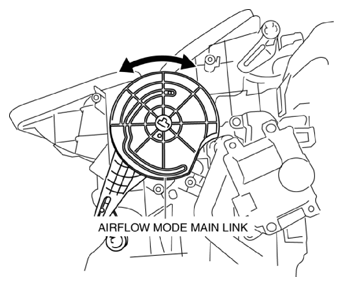

    Fig 3: Moving Airflow Mode Main Link
    G10948499Courtesy of MAZDA MOTORS CORP.
  4. Align airflow mode link tab A of the cover with the link groove on the airflow mode main link side, airflow mode link tab B of the cover with the link groove on the front A/C unit side as shown in the figure, and install the cover.
    NOTE:
    • The airflow mode main link is not secured, therefore hold it with your hand so that it does not detach.

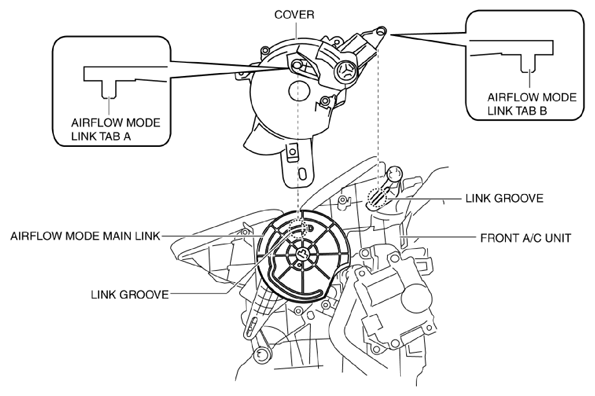

    Fig 4: Aligning Airflow Mode Link Tab A Of Cover With Link Groove On Airflow Mode Main Link Side
    G10948500Courtesy of MAZDA MOTORS CORP.
  5. Verify that the airflow mode link tabs are engaged with the link grooves.
  6. Install the screws.

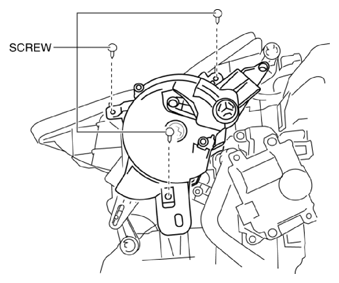

    Fig 5: Installing Screws
    G10948501Courtesy of MAZDA MOTORS CORP.
  7. Align the airflow mode main link shaft with the shape of the front airflow mode actuator hole, and install the front airflow mode actuator.

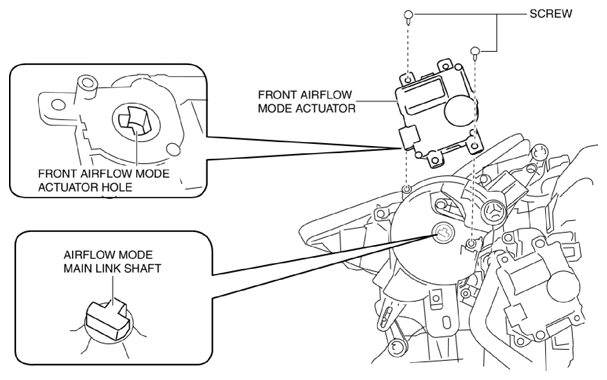

    Fig 6: Installing Front Airflow Mode Actuator
    G10948502Courtesy of MAZDA MOTORS CORP.
  8. Install the screws.
  9. Connect the connector.

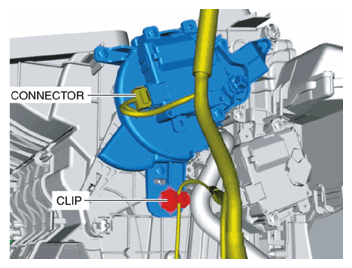

    Fig 7: Connecting Connector
    G10948503Courtesy of MAZDA MOTORS CORP.
  10. Install the clip.
  11. Install the following parts:
    1. Passenger-side front heat duct (Refer to FRONT HEAT DUCT REMOVAL/INSTALLATION .)
    2. Passenger-side lower panel (Refer to PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    3. Driver-side lower panel (Refer to DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    4. Fuel-filler lid opener lever (Refer to FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    5. Hood release lever (Refer to HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    6. Front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    7. Front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    8. Passenger-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
    9. Dashboard under cover (Refer to DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    10. Glove compartment (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    11. Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
    12. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    13. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
    14. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  12. Connect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
