Rear Climate Control Unit Removal/Installation

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the rear console panel. (Refer to REAR CONSOLE REMOVAL/INSTALLATION .)

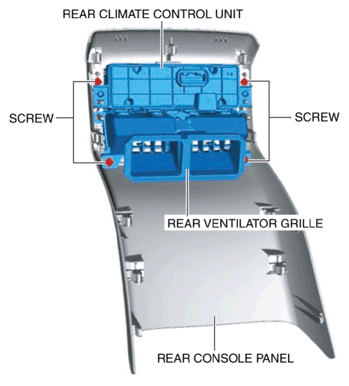

Remove the screws.

Fig 1: Removing Rear Climate Control Unit And Rear Ventilator Grille From Rear Console Panel
Courtesy of MAZDA MOTORS CORP.
Remove the rear climate control unit and rear ventilator grille from the rear console panel.

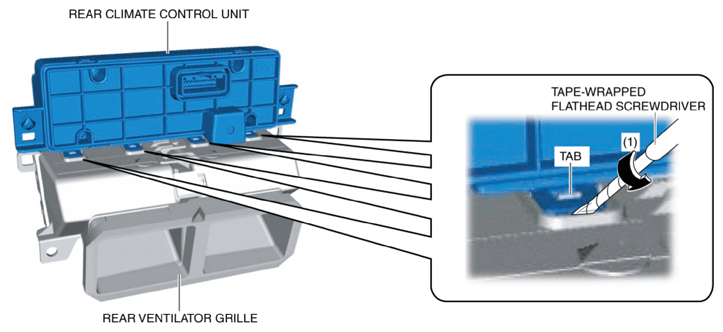

Insert a tape-wrapped Flathead screwdriver into the positions shown in the figure and move it in the direction of the arrows (1), and detach the tabs.

Fig 2: Detaching Tabs
Courtesy of MAZDA MOTORS CORP.

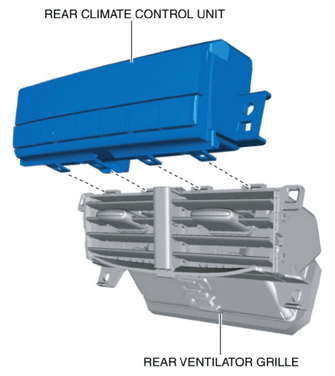

Remove the rear climate control unit from the rear ventilator grille.

Fig 3: Removing Rear Climate Control Unit From Rear Ventilator Grille
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
