Automatic Transaxle Control System Wiring Diagram

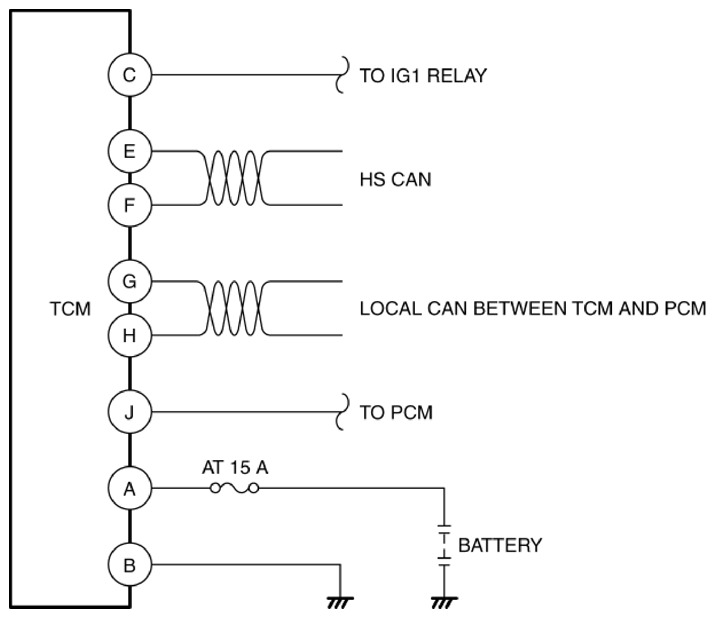

Fig 1: Automatic Transaxle Control System Wiring Diagram (GW6A-EL And GW6AX-EL)
G10947834Courtesy of MAZDA
