Automatic Transaxle Shift Mechanism Location Index

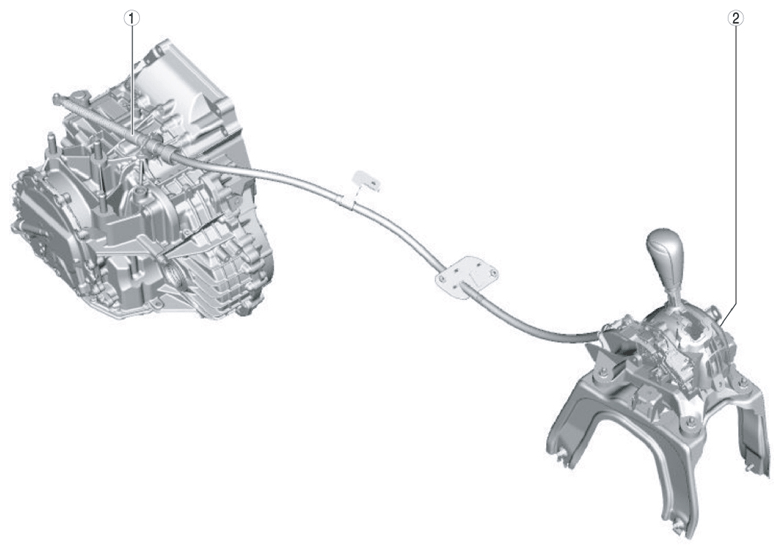

Fig 1: Automatic Transaxle Shift Mechanism Selector Cable And Lever

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Selector cable (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
2	Selector lever component (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .) (See SELECTOR LEVER INSPECTION .) (See SHIFT-LOCK SYSTEM INSPECTION .) (See NOT P POSITION SWITCH inspection .)
