Active Driving Display Installation Note

  1. Install the screws in the order of (1), (2), (3), and (4).

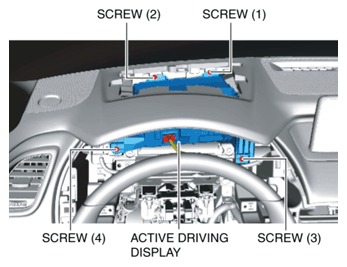

    Fig 1: Identifying Active Driving Display And Screws
    G10950866Courtesy of MAZDA MOTORS CORP.
