Mounting Rubber Installation Note

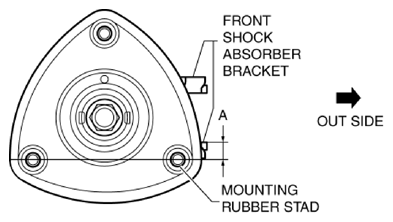

  1. Install the mounting rubber so that the mounting rubber stud and the front shock absorber bracket are in position A shown in the following figure.
    Fig 1: Identifying Front Shock Absorber Bracket Position
    G10947229Courtesy of MAZDA
