Battery Clamp Installation Note

  1. Install the battery clamp in the direction shown in the figure.

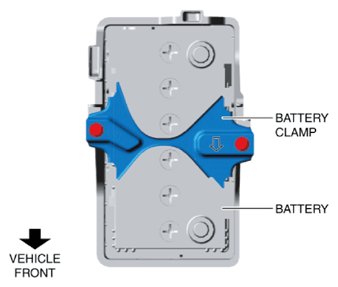

Fig 1: Identifying Battery And Clamp
G10951884Courtesy of MAZDA MOTORS CORP.
