KS Installation Note (SKYACTIV-G 2.5)

Verify that there is no foreign matter caught between the KS unit and cylinder block.
The direction of the KS connector is within the 60-degree angle range shown in the figure.

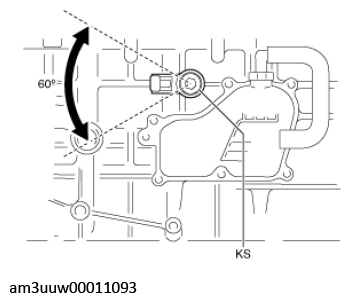

Fig 1: Knock Sensor Installation Range

Courtesy of MAZDA MOTORS CORP.
