Guide Disassembly Note

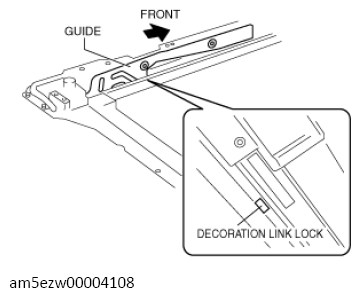

  1. Insert a hand to the back side of the sunroof frame, raise the decoration link lock and remove it.
    G13728278Courtesy of MAZDA MOTORS CORP.
  2. Slide the guide to the rear of the sunroof frame, and remove the guide and decoration link as a single unit.
