Microphone Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    3. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)

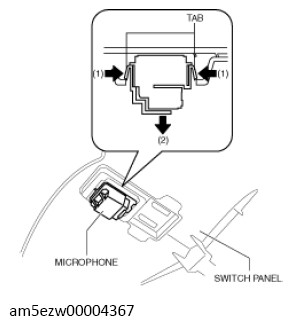

  3. Remove the microphone in the direction of the arrow (2) shown in the figure while pressing the microphone tabs in the direction of the arrow (1).
    G13728628Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
