Radiator Mount Removal Note

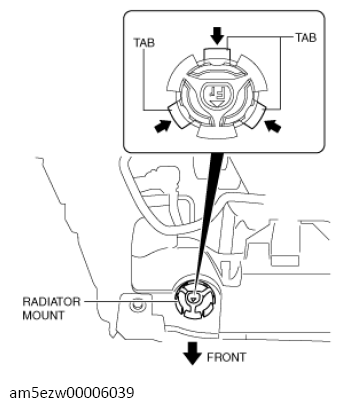

  1. While pressing the radiator mount tab in the direction of the arrow shown in the figure, lift the radiator mount.
    G13726690Courtesy of MAZDA MOTORS CORP.
  2. Remove the radiator mount.
