Timing Chain Installation Note

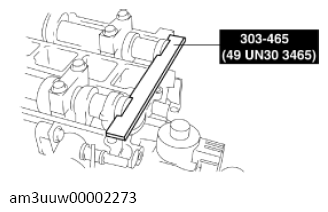

  1. Install the SST to the camshaft as shown.
    G13726583Courtesy of MAZDA MOTORS CORP.
  2. Install the timing chain.
  3. Remove the retaining wire or paper clip from the auto tensioner to apply tension to the timing chain.
