Air Hose Installation Note

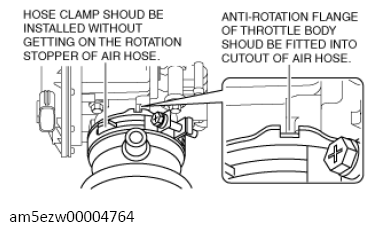

Install the air hose as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
