Stabilizer Bushing Installation Note

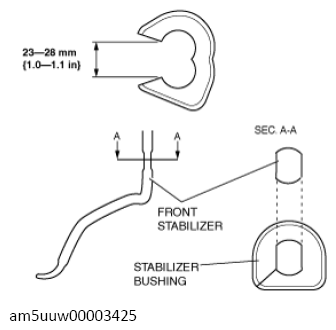

  1. Widen the stabilizer bushing opening 23-28 mm {1.0-1.1 in} and install the bushing to the front stabilizer as shown in the figure.
    G13726985Courtesy of MAZDA MOTORS CORP.

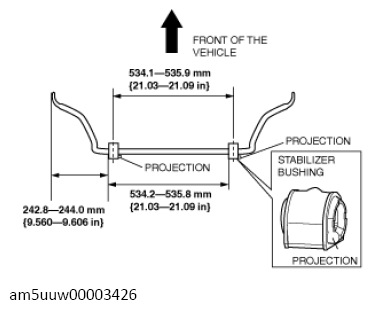

  2. Verify the installation direction of the stabilizer bushing.
G13726986Courtesy of MAZDA MOTORS CORP.
