Front Scuff Plate Removal/Installation

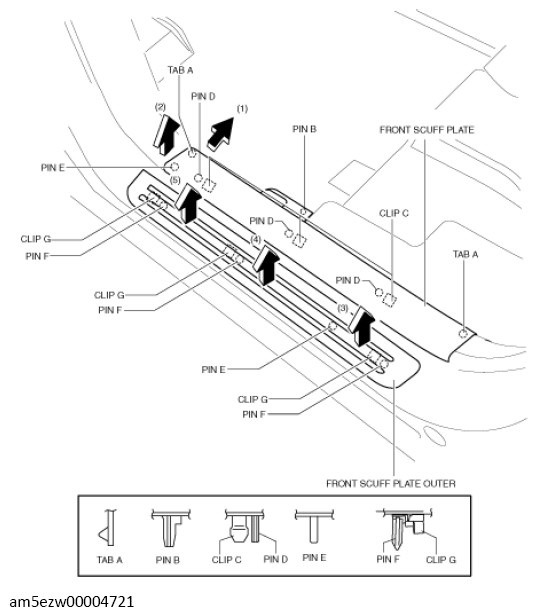

- Detach tabs A while pulling the front scuff plate in the direction of the arrow (1) shown in the figure, then detach pin B, clip C, pins D and pin E while pulling in the direction of the arrow (2).
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the front scuff plate.
- Pull the front scuff plate outer in the direction of arrow (3), (4), (5) while remove the pin E, pins F and clip G.
- Remove the front scuff plate outer.
- Install in the reverse order of removal.
