How To Use This Service Info Document: Symbols

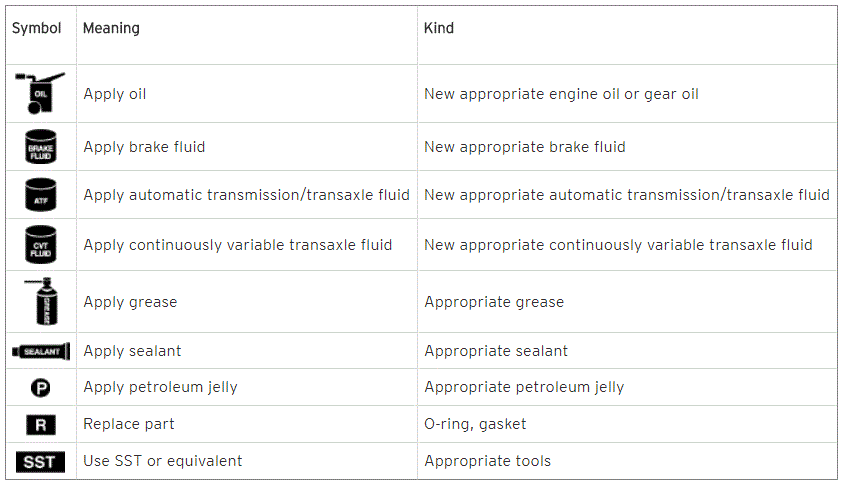

There are nine symbols indicating oil, grease, fluids, sealant, and the use of SST or equivalent. These symbols show application points or use of these materials during service.

Courtesy of MAZDA MOTORS CORP.
