System wiring diagram

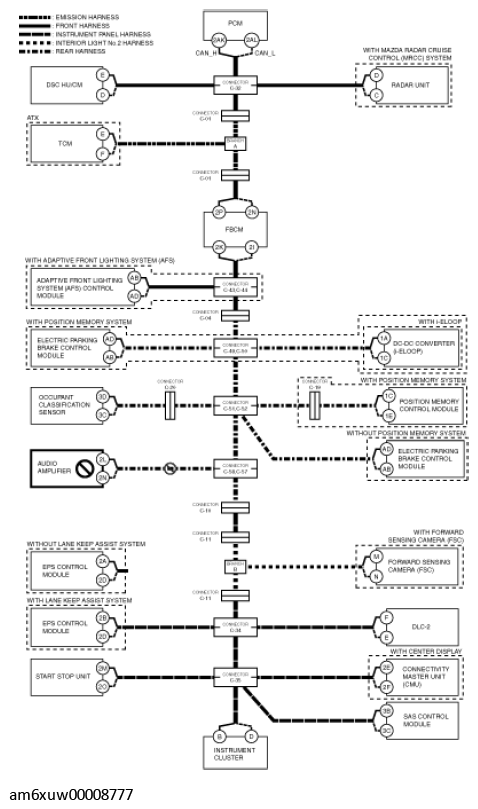

Fig 1: System Wiring Circuit Diagram

Courtesy of MAZDA MOTORS CORP.

Inspection item

• Audio amplifier power supply voltage-related wiring harness and fuse
• Audio amplifier body ground related wiring harness

• Audio amplifier connector
• Connectors C-58, C-57
• Wiring harness between audio amplifier terminal 2L and connector C-58
• Wiring harness between audio amplifier terminal 2N and connector C-57
• Audio amplifier
