Description example

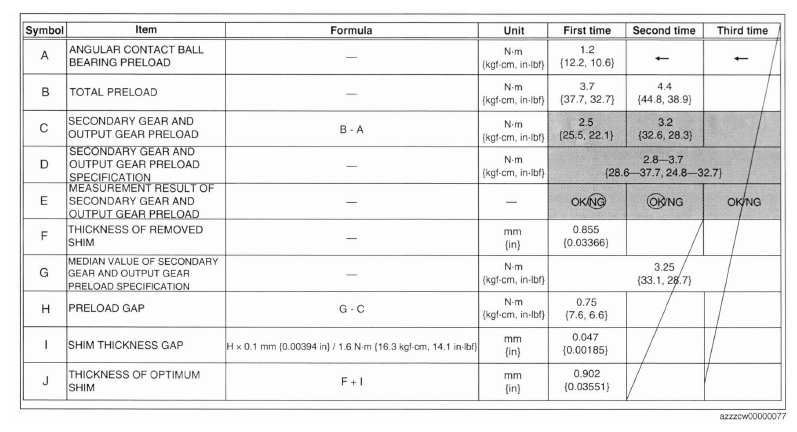

Fig 1: Secondary Gear And Output Gear Preload Measurement/Adjustment Description Example
G08347508Courtesy of MAZDA MOTORS CORP.
