Center Display Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION .)
  3. Remove the bolt.

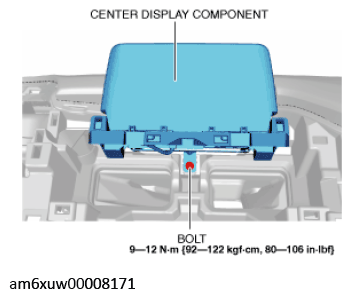

    Fig 1: Center Display Component And Bolt
    G11544117Courtesy of MAZDA MOTORS CORP.
  4. Pull the center display component in the order of arrows (1) and (2) shown in the figure, and detach clips from the dashboard.

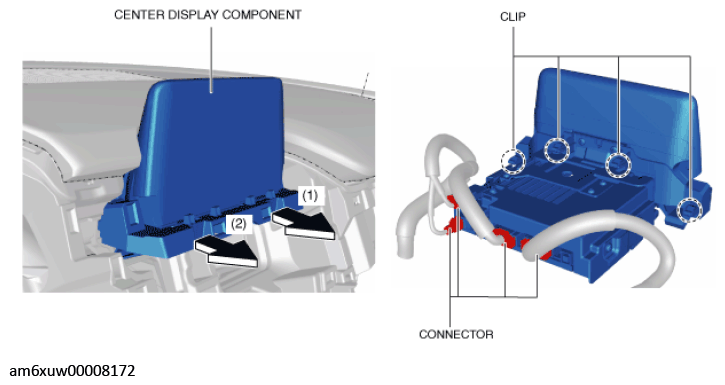

    Fig 2: Removing Center Display Component
    G11544118Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connectors.
  6. Remove the center display component.
  7. Remove the connectivity master unit (CMU). (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
  8. Install in the reverse order of removal.
