Brake Pipe Removal Note

  1. Place an alignment mark on the brake pipe and DSC HU/CM.

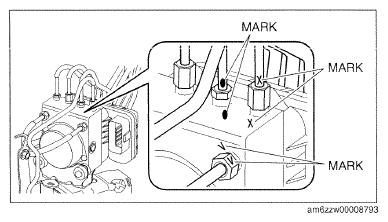

    Fig 1: Locating An Alignment Marks (Vehicles Without Mazda Radar Cruise Control)
    G09785866Courtesy of MAZDA MOTORS CORP.
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Disconnect the brake pipes.
