Bluetooth UNIT REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The audio unit communicates with the Bluetooth unit and records the presence/non-presence of the Bluetooth unit when the ignition is switched to ACC or ON (engine off or on) after connecting the negative battery cable.
  • If the commander switch is installed with the negative battery cable connected when the audio unit records that there is no Bluetooth unit, the Bluetooth unit does not operate.
  • For the Bluetooth unit installation/removal, disconnect the negative battery cable, switch the ignition to ACC or ON (engine off or on) after the servicing is completed, and the audio unit records the presence/non-presence of the Bluetooth unit.
  1. Disconnect the negative battery cable. (Seed-17-11 NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove the nuts.
  4. Disconnect the connector.
  5. Remove the Bluetooth unit.
  6. Install in the reverse order of removal.

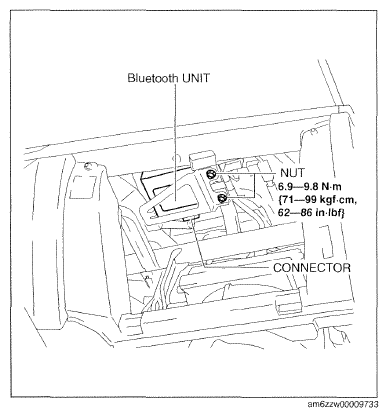

    Fig 1: Bluetooth Unit, Connector And Nut With Torque Specifications
    G09788438Courtesy of MAZDA MOTORS CORP.
