Full-auto Air Conditioner: Notes

System wiring diagram

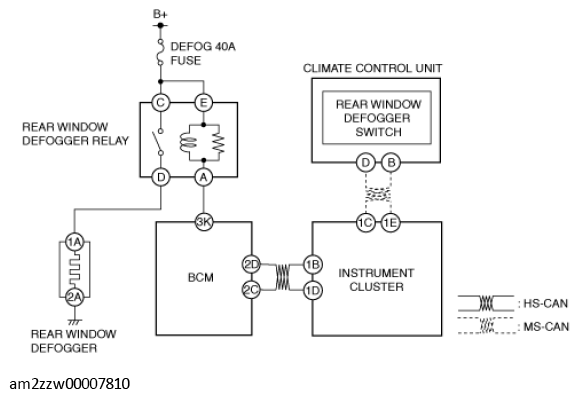

Fig 1: Rear Window Defogger System Wiring Diagram (Full-Auto Air Conditioner)
G11434335Courtesy of MAZDA MOTORS CORP.
