On-Board Diagnostic Wiring Diagram [Adaptive Front Lighting System (AFS) Control Module]

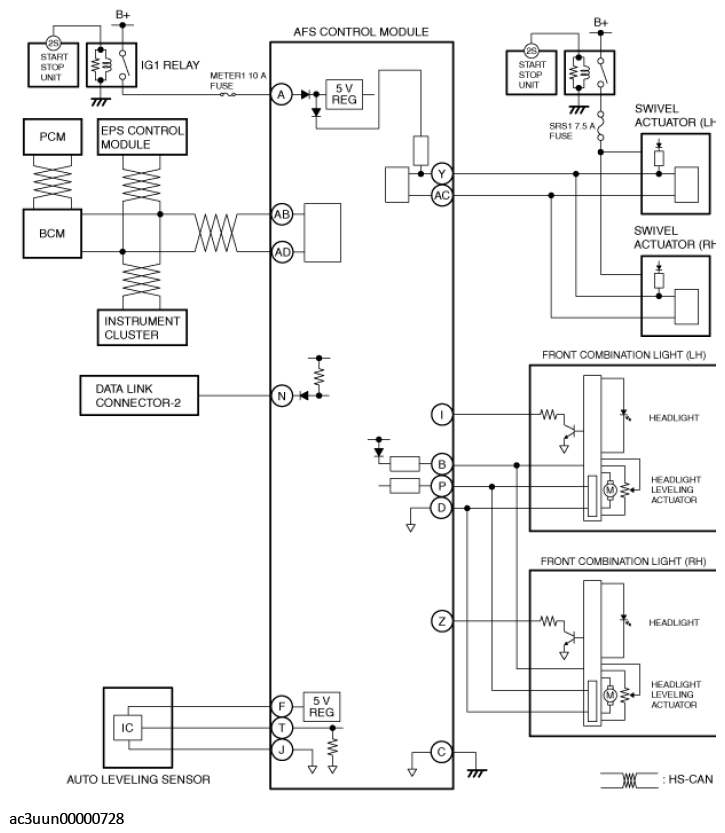

Fig 1: Adaptive Front Lighting System (AFS) Control Module On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
