Adjuster Anchor Removal/Installation

WARNING:
  • The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery terminal or work carefully, avoiding excessive impact to the lower part of the B-pillar.
  1. Switch the ignition off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Set the adjuster to the lowest position.
  4. Remove the following parts:
    1. Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    4. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    5. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    6. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
  5. Remove bolt A.

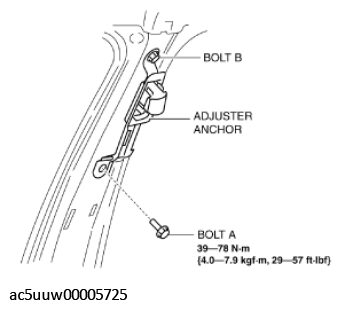

    Fig 1: Adjuster Anchor And Bolt A With Tightening Torque
    G11428656Courtesy of MAZDA MOTORS CORP.
  6. Remove bolt B.

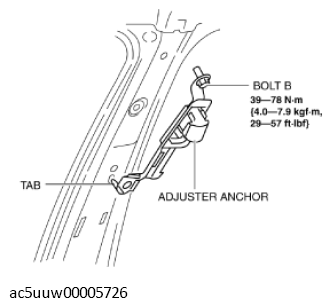

    Fig 2: Adjuster Anchor And Bolt B With Tightening Torque
    G11428657Courtesy of MAZDA MOTORS CORP.
  7. Remove the tab.
  8. Remove the adjuster anchor.
  9. Install in the reverse order of removal.
