Continuity Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [C66M-R] .)
3. Inspect for continuity between neutral switch terminal A and B.

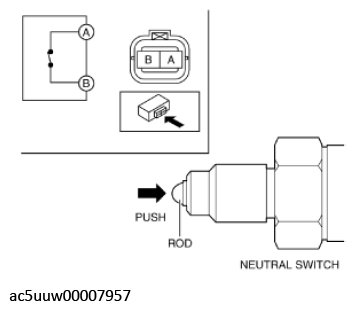

Fig 1: Neutral Switch Connector Terminal

Courtesy of MAZDA MOTORS CORP.

• If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [C66M-R] .)

Specification
