On-Board Diagnostic Wiring Diagram [Power Liftgate (PLG) Control Module]

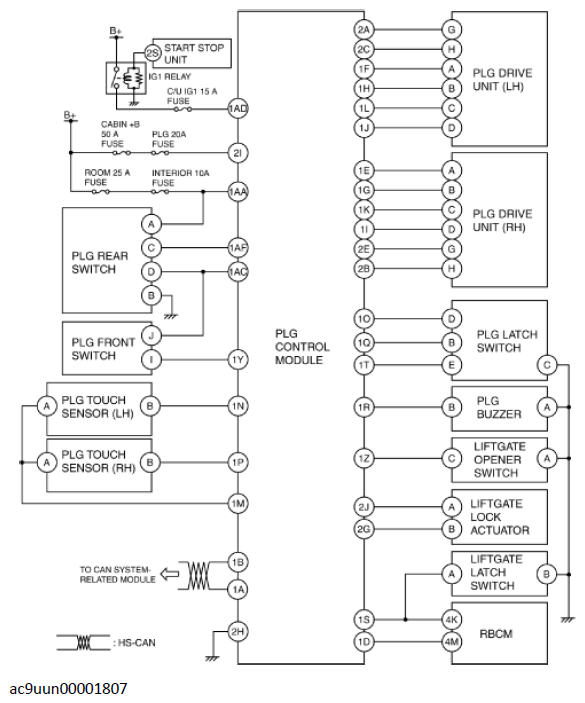

Fig 1: On-Board Diagnostic (Power Liftgate Control Module) Wiring Diagram
G11432283Courtesy of MAZDA MOTORS CORP.
