On-Board Diagnostic Wiring Diagram [Blind Spot Monitoring (BSM) Control Module]

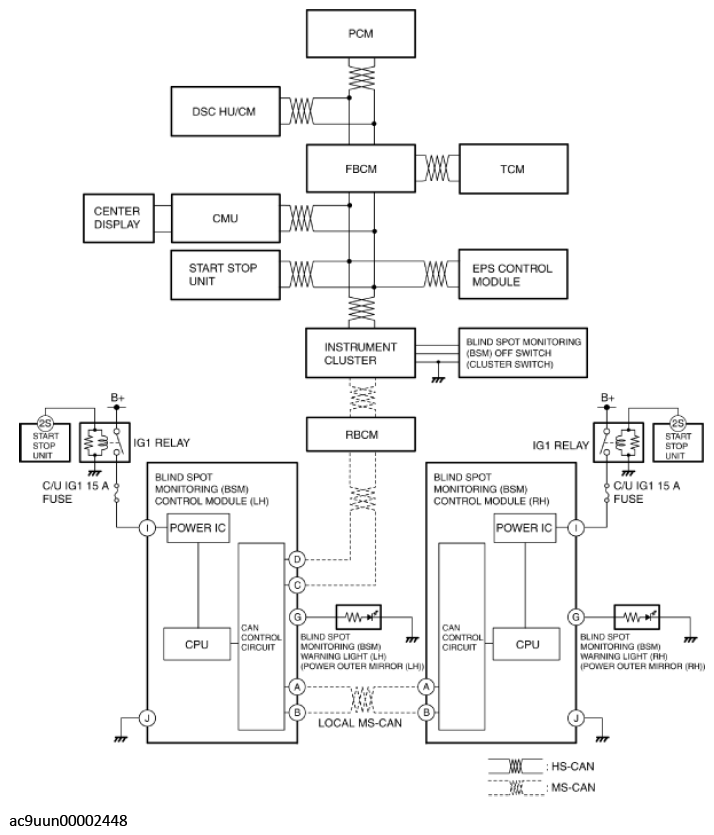

Fig 1: Blind Spot Monitoring Control Module Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
