DTC P004C-00; Three Way Solenoid Valve Control Circuit Low Input: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P004C:00 |
Three way solenoid valve control circuit low input |
| DETECTION CONDITION |
- The three way solenoid valve control voltage at the PCM terminal 1BH is low for a continuous 5 s relative to the PCM control condition.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |

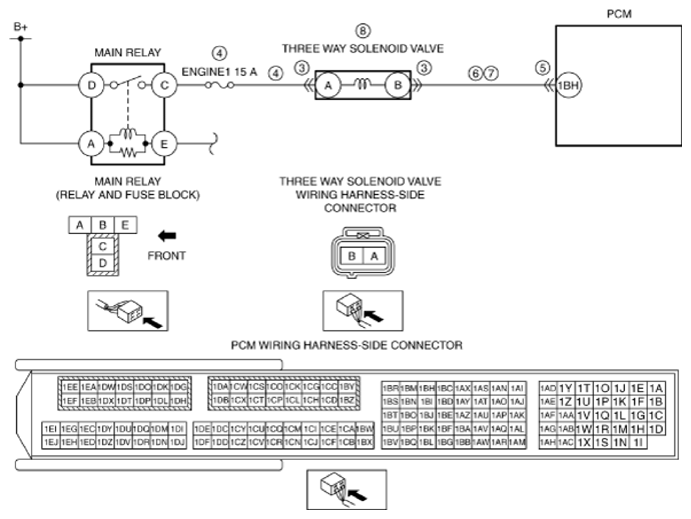

- Three way solenoid valve connector or terminals malfunction
- Short to ground or open circuit in three way solenoid valve power supply circuit:
- Short to ground in wiring harness between ENGINE1 15 A fuse and three way solenoid valve terminal A
- ENGINE1 15 A fuse malfunction
- Open circuit in wiring harness between main relay terminal C and three way solenoid valve terminal A
- PCM connector or terminals malfunction
- Short to ground in wiring harness between three way solenoid valve terminal B and PCM terminal 1BH
- Open circuit in wiring harness between three way solenoid valve terminal B and PCM terminal 1BH
- Three way solenoid valve malfunction
- PCM malfunction
|
|
|
