DTC P0092-00; Fuel Pressure Regulator Control Circuit High Input: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0092:00 |
Fuel pressure regulator control circuit high input |
| DETECTION CONDITION |
- When the PCM turns the spill valve control solenoid valve on but the spill valve control solenoid valve circuit voltage is high for 5 s, the PCM determines that the spill valve control solenoid valve control circuit has a malfunction.
MONITORING CONDITIONS
- The following conditions are met:
- Engine speed: 5, 700 rpm or less
- Battery voltage: 10.5 V or more
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Stops high pressure fuel pump control
- Limits intake air amount
|
| POSSIBLE CAUSE |
- High pressure fuel pump connector or terminals malfunction
- PCM connector or terminals malfunction

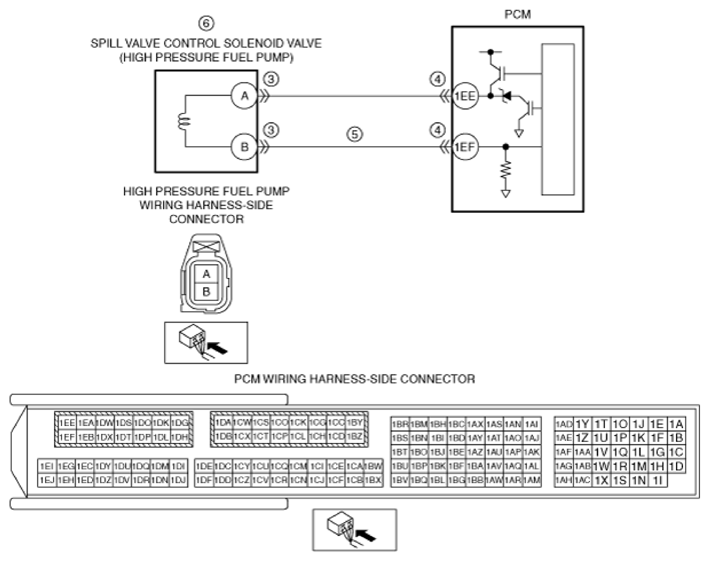

- Short to power supply in wiring harness between high pressure fuel pump terminal B and PCM terminal 1EF
- Spill valve control solenoid valve (built-into high pressure fuel pump) malfunction
- PCM malfunction
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
Related PIDs
| Item (definition) |
Unit/Condition |
Definition |
Condition/Specification (Reference) |
| FUEL_PRES |
KPa {MPA}, mBar {BAR}, psi, in H20 |
Fuel pressure input from high fuel pressure sensor |
|
| V |
High fuel pressure sensor voltage |
Ignition switched ON (engine off)
- Fuel pressure is approx. 16.91 MPa {172.4 kgf/cm2
, 2453 psi}: Approx. 2.91 V Idle (after warm up)
- Fuel pressure is 3.44-3.95 MPa {35.1-40.2 kgf/cm2
, 499-572 psi}: 0.98-1.05 V (ECT is 90 °C {194 °F})
|
