DTC P0098-00; At Sensor No. 2 Circuit High Input: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0098:00 |
IAT sensor No. 2 circuit high input |
| DETECTION CONDITION |
- If the PCM detects that the IAT sensor No. 2 voltage at the PCM terminal 1BN is 4.96 V or more for 5 s, the PCM determines that the IAT sensor No. 2 circuit voltage is high.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |

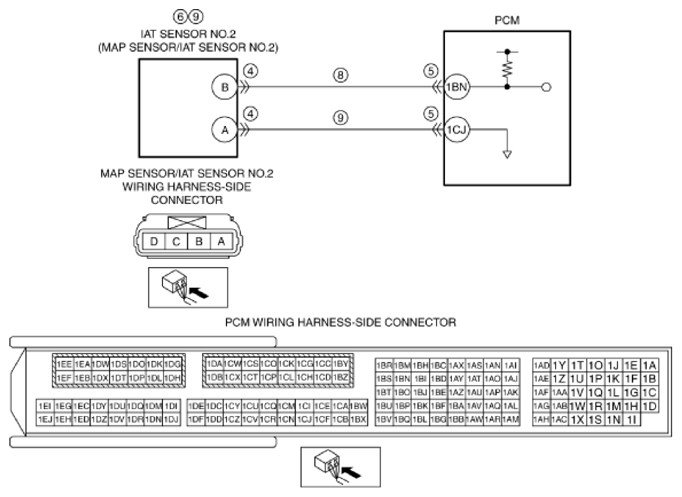

- MAP sensor/IAT sensor No. 2 connector or terminals malfunction
- PCM connector or terminals malfunction
- IAT sensor No. 2 malfunction
- Short to power supply in wiring harness between MAP sensor/IAT sensor No. 2 terminal B and PCM terminal 1BN
- Open circuit in wiring harness between the following terminals:
- MAP sensor/IAT sensor No. 2 terminal B-PCM terminal 1BN
- MAP sensor/IAT sensor No. 2 terminal A-PCM terminal 1CJ
- PCM malfunction
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
Related PIDs
| Item (definition) |
Unit/Condition |
Definition |
Condition/Specification (Reference) |
| IAT2 |
°C, °F |
Intake air temperature (No. 2) input from IAT sensor No. 2 |
|
| V |
IAT sensor No. 2 voltage |
- IAT2 is 20 °C {68 °F}: Approx. 3.57 V
- IAT2 is 40 °C {104 °F}: Approx. 2.70 V
- IAT2 is 60 °C {140 °F}: Approx. 1.87 V
|
