DTC P0117-00; ECT Sensor No. 1 Circuit Low Input: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0117:00 |
ECT sensor No. 1 circuit low input |
| DETECTION CONDITION |
- The PCM monitors the ECT sensor No. 1 signal. If the PCM detects that the ECT sensor No. 1 voltage at the PCM terminal 1BI is below 0.2 V for 5 s, the PCM determines that the ECT sensor No. 1 circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (engine cooling system).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Fixes the water temperature for the engine control at 40 °C {104 °F}, and for the idle air control at 80 °C {176 °F}.
- Operates the cooling fan (high speed rotation).
- Inhibits the fuel cut control during shift change.
|
| POSSIBLE CAUSE |
- Engine overheating (cooling system malfunction)
- ECT sensor No. 1 connector or terminals malfunction
- ECT sensor No. 1 malfunction

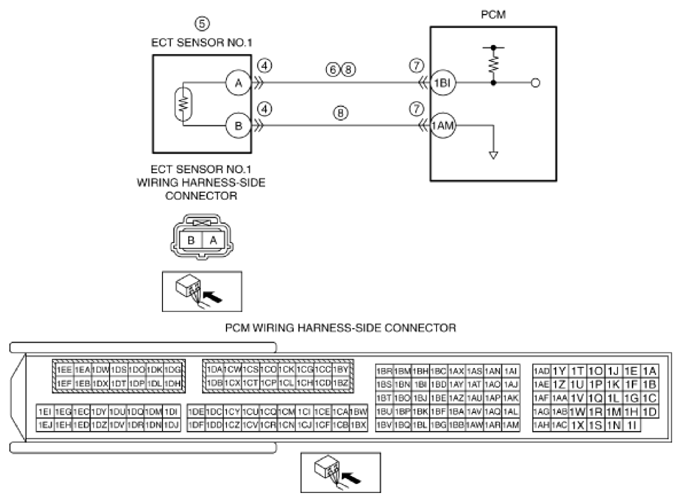

- Short to ground in wiring harness between ECT sensor No. 1 terminal A and PCM terminal 1BI
- PCM connector or terminals malfunction
- ECT sensor No. 1 signal circuit and ground circuit are shorted to each other
- PCM malfunction
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
Related PIDs
| Item (definition) |
Unit/Condition |
Definition |
Condition/Specification (Reference) |
| ECT |
°C, °F |
Engine coolant temperature input from ECT sensor No. 1 |
|
| V |
ECT sensor No. 1 voltage |
Ignition switched ON (engine off)
- ECT is 29 °C {84 °F}: Approx. 2.65 V
Idle (after warm up)
- ECT is 88 °C {190 °F}: Approx. 0.71 V
|
