DTC P0123-00; TP Sensor No. 1 Circuit High Input: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0123:00 |
TP sensor No. 1 circuit high input |
| DETECTION CONDITION |
- If the PCM detects that the TP sensor No. 1 voltage at the PCM terminal 1AZ is above 4.9 V, the PCM determines that the TP sensor No. 1 circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Restricts the upper limit of the engine speed.
- PCM restricts engine torque.
|
| POSSIBLE CAUSE |
- Throttle body connector or terminals malfunction
- PCM connector or terminals malfunction
- TP sensor No. 1 malfunction

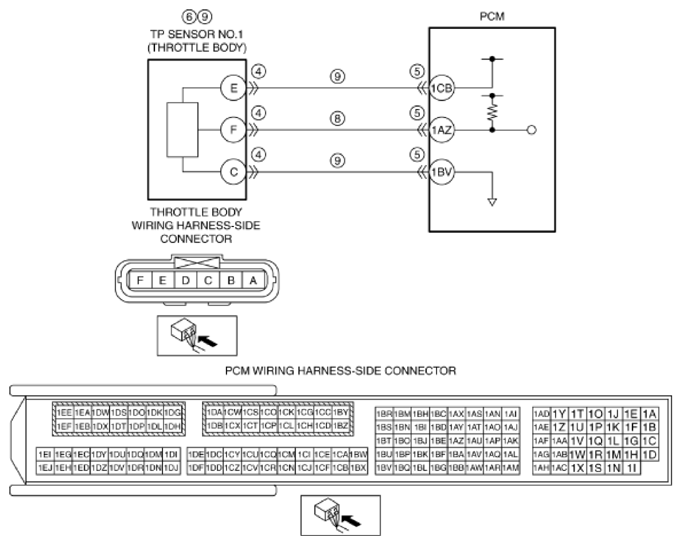

- Short to power supply in wiring harness between throttle body terminal F and PCM terminal 1AZ
- Open circuit in wiring harness between the following terminals:
- Throttle body terminal E-PCM terminal 1CB
- Throttle body terminal F-PCM terminal 1AZ
- Throttle body terminal C-PCM terminal 1BV
- PCM malfunction
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
Related PIDs
| Item (definition) |
Unit/Condition |
Definition |
Condition/Specification (Reference) |
| TP1 |
% |
Throttle valve position No. 2 |
- Accelerator pedal released: Approx. 22%
- Accelerator pedal fully depressed: Approx. 92%
|
| V |
TP sensor No. 2 voltage |
- Accelerator pedal released: Approx. 3.92 V
- Accelerator pedal fully depressed: Approx. 0.41 V
|
