DTC P0192-00; High Fuel Pressure Sensor Circuit Low Input: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0192:00 |
High fuel pressure sensor circuit low input |
| DETECTION CONDITION |
- If the input voltage at the PCM terminal 1CA is less than 0.74 V for 5 s, the PCM determines that the fuel pressure sensor circuit is low (U.S.A.).
- If the input voltage at the PCM terminal 1CA is less than 0.16 V for 5 s, the PCM determines that the fuel pressure sensor circuit is low (Except U.S.A.).
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Stops high pressure fuel pump control
- Limits intake air amount
|
| POSSIBLE CAUSE |
- High fuel pressure sensor connector or terminals malfunction
- PCM connector or terminals malfunction

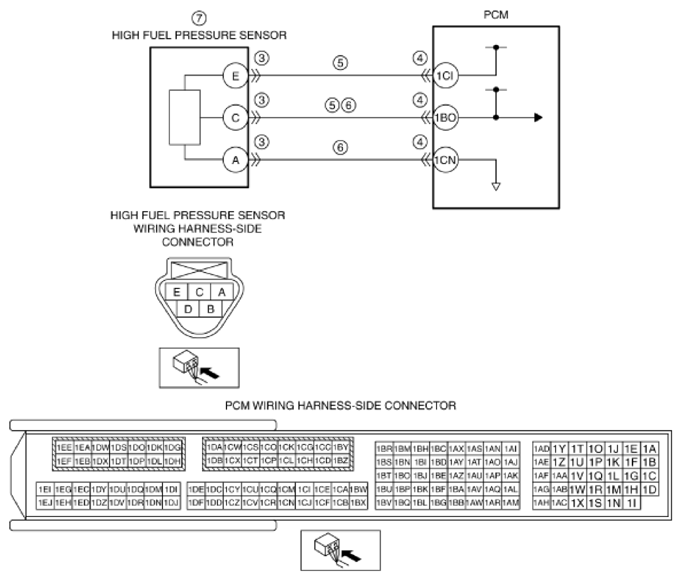

- Short to ground in wiring harness between the following terminals:
- High fuel pressure sensor terminal E-PCM terminal 1CI
- High fuel pressure sensor terminal C-PCM terminal 1BO
- High fuel pressure sensor signal circuit and ground circuit are shorted to each other
- High fuel pressure sensor malfunction
- High pressure fuel pump malfunction
- PCM malfunction
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
Related PIDs
| Item (definition) |
Unit/Condition |
Definition |
Condition/Specification (Reference) |
| FUEL_PRES |
KPa {MPA}, mBar {BAR}, psi, in H20 |
Fuel pressure input from high fuel pressure sensor |
|
| V |
High fuel pressure sensor voltage |
Ignition switched ON (engine off)
- Fuel pressure is approx. 16.91 MPa {172.4 kgf/cm2
, 2453 psi}: Approx. 2.91 V
Idle (after warm up)
- Fuel pressure is 3.44-3.95 MPa {35.1-40.2 kgf/cm2
, 499-572 psi}: 0.98-1.05 V (ECT is 90 °C {194 °F})
|
