DTC P0462-00; Fuel Gauge Sender Unit Circuit Low Input: Notes

DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0462:00	Fuel gauge sender unit circuit low input
DETECTION CONDITION	The PCM monitors the fuel level signal and fuel gauge sender unit output voltage from the instrument cluster. If the PCM detects a fuel level or fuel gauge sender unit output voltage that is too low, the PCM determines that the fuel gauge sender unit circuit has a malfunction. Diagnostic support note This is a continuous monitor (CCM). The check engine light illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle. FREEZE FRAME DATA/Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Not applicable

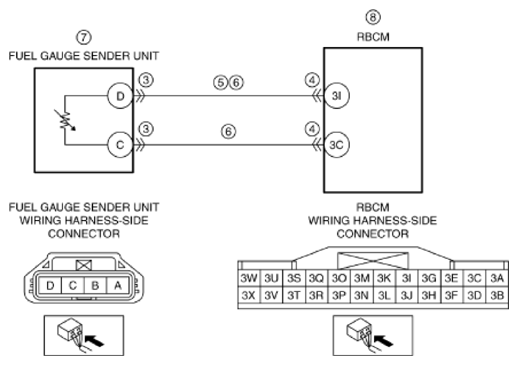

POSSIBLE CAUSE	Fuel gauge sender unit connector or terminals malfunction Rear body control module (RBCM) connector or terminals malfunction Short to ground in wiring harness between fuel gauge sender unit terminal D and rear body control module (RBCM) terminal 3I Fuel gauge sender unit signal circuit and ground circuit are shorted to each other Fuel gauge sender unit malfunction Rear body control module (RBCM) malfunction Instrument cluster malfunction PCM malfunction
