Troubleshooting Procedure

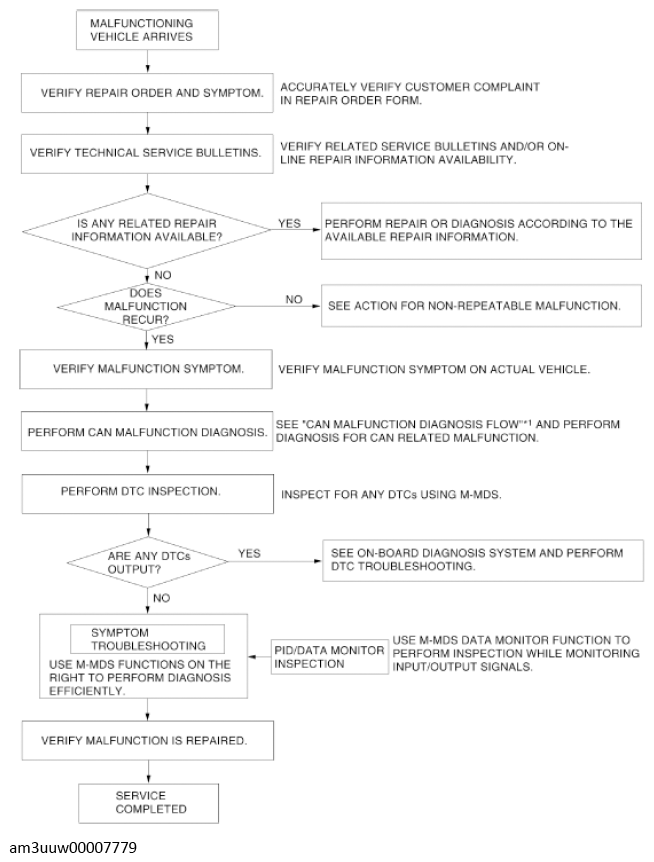

Fig 1: Foreword SAS Control Module (Standard Deployment Control System) Troubleshooting Procedure Flowchart

Courtesy of MAZDA MOTORS CORP.

*1: CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW.

Action for Non-repeatable Malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

• Verify that a DTC has been recorded in the memory.
• Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.
• Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.
  Fig 2: Shaking Connector Of Electrical Component

  Courtesy of MAZDA MOTORS CORP.
• Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM .)
