On-Board Diagnostic Wiring Diagram [SAS Control Module (Standard Deployment Control System)]

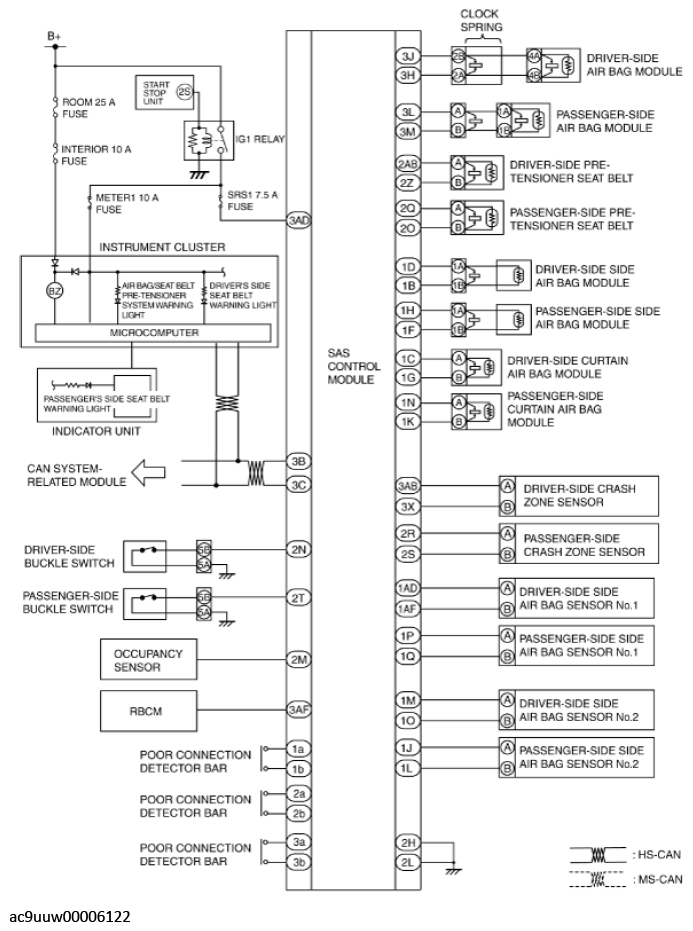

Fig 1: On-Board Diagnostic Wiring Diagram - SAS Control Module (Standard Deployment Control System)

Courtesy of MAZDA MOTORS CORP.

Fig 2: SAS Control Module Harness-Side Connector

Courtesy of MAZDA MOTORS CORP.
