DTC B00A0-81; B00A0-87; Occupant Classification Sensor Memory Check Sum Error/No Signal RECIEVED: Notes

DETECTION CONDITION AND POSSIBLE CAUSE

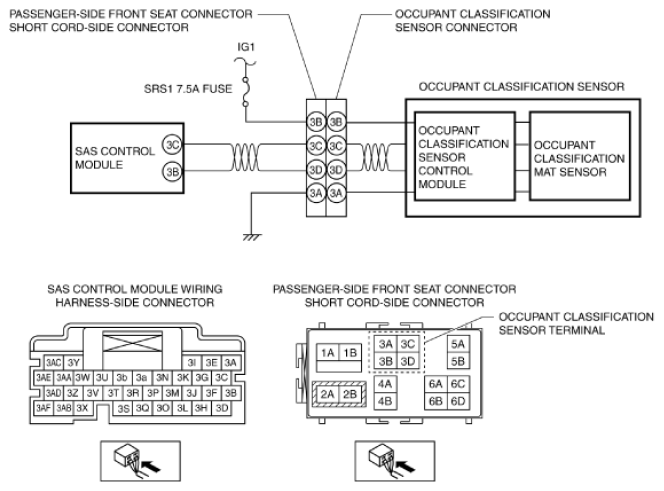

System malfunction location	B00A0:81:Occupant classification sensor memory check sum error B00A0:87:No signal received from occupant classification sensor
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Error signal is detected between SAS control module and occupant classification sensor
Fail-safe	Not applicable
Possible cause	Occupant classification sensor connector malfunction CAN communication line malfunction Occupant classification sensor malfunction SAS control module malfunction
