Troubleshooting Procedure

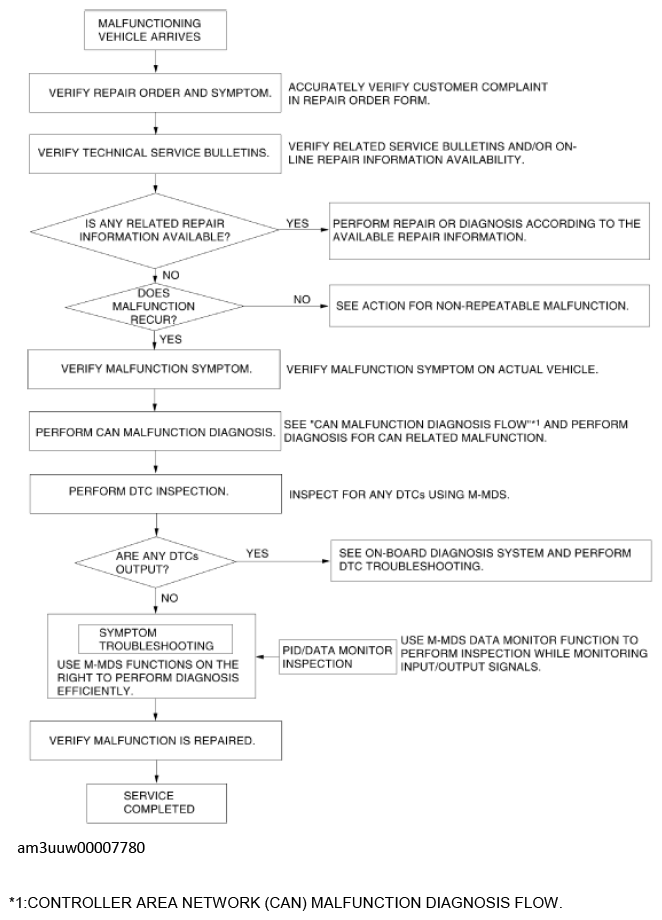

Fig 1: SAS Control Module (Two-Step Deployment Control System) Troubleshooting Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
*1: CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW.
Courtesy of MAZDA MOTORS CORP.
