Front Oil Seal Replacement: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the front splash shield No. 1 (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

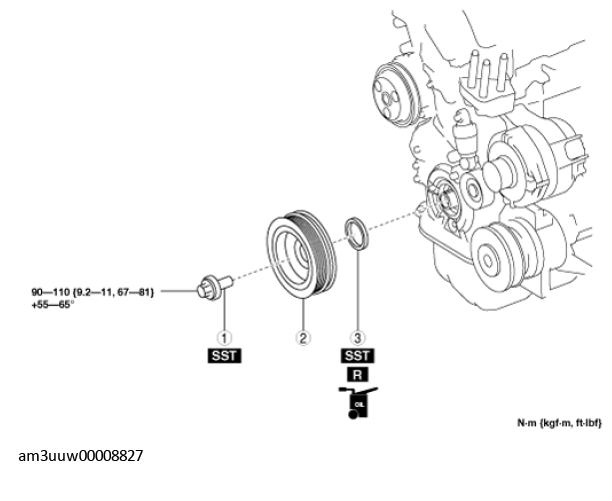

COMPONENT DESCRIPTION
| 1 | Crankshaft pulley lock bolt (See Crankshaft Pulley Lock Bolt Removal Note .) (See Crankshaft Pulley Lock Bolt Installation Note .) |
| 2 | Crankshaft pulley |
| 3 | Front oil seal (See Front Oil Seal Removal Note .) (See Front Oil Seal Installation Note .) |
