Steering Gear And Linkage Disassembly: Notes

Special Service Tool (SST)

49 JP02 001
Adjustable wrench

Courtesy of MAZDA MOTORS CORP.

49 B032 317
Bearing oil seal remover

Courtesy of MAZDA MOTORS CORP.

49 T028 301
Dust boot installer

Courtesy of MAZDA MOTORS CORP.

CAUTION:

To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

Remove the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)
Disassemble in the order indicated in the figure.

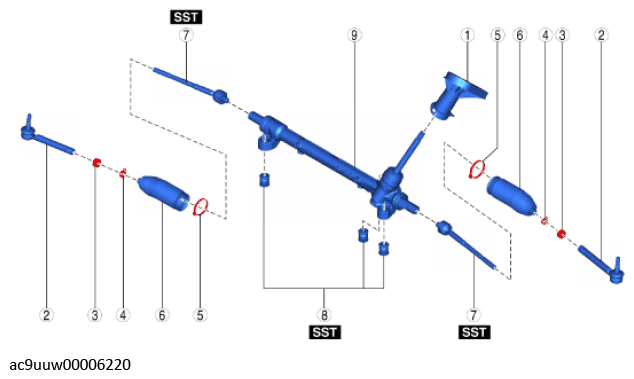

Fig 1: Steering Gear And Linkage Disassembly Sequence

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Dust cover
2	Tie-rod end (See Tie-rod End Disassembly Note .)
3	Locknut
4	Boot clamp
5	Boot band (See Boot Band Disassembly Note .)
6	Boot
7	Tie rod (See Tie Rod Disassembly Note .)
8	Mounting rubber (See Mounting Rubber Disassembly Note .)
9	Steering gear
