| Detection condition |
- The retractable fastback control module cannot detect a pulse signal from the front roof link motor (LH) when the front roof link motor operation starts.
|
| Fail-safe |
- Stops retractable fastback operation
|
| Possible cause |

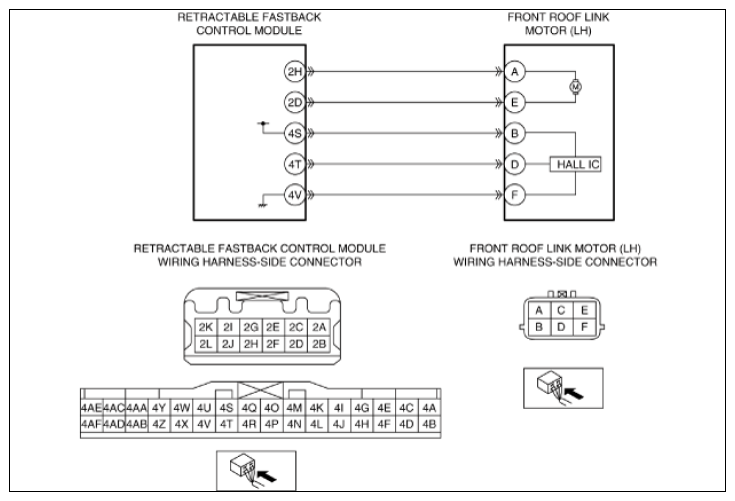

- Open circuit in wiring harness between the following terminals:
- Retractable fastback control module terminal 4T and front roof link motor (LH) terminal D
- Retractable fastback control module terminal 4S and front roof link motor (LH) terminal B
- Retractable fastback control module terminal 4V and front roof link motor (LH) terminal F
- Short to ground in wiring harness between the following terminals:
- Retractable fastback control module terminal 4T and front roof link motor (LH) terminal D
- Retractable fastback control module terminal 4S and front roof link motor (LH) terminal B
- Short to power supply in wiring harness between the following terminals:
- Retractable fastback control module terminal 4T and front roof link motor (LH) terminal D
- Retractable fastback control module terminal 4V and front roof link motor (LH) terminal F
- Line-to-line short circuit in wiring harness between the following terminals:
- Front roof link motor (LH) terminal D and front roof link motor (LH) terminal B
- Front roof link motor (LH) terminal D and front roof link motor (LH) terminal F
- Front roof link motor (LH) terminal B and front roof link motor (LH) terminal F
- Retractable fastback control module malfunction
- Front roof link motor (LH) malfunction
|
