| Detection condition |
- The retractable fastback control module receives a signal from the front roof link motor (RH) while the front roof link motor (LH) is not operating.
|
| Fail-safe |
- Stops retractable fastback operation
|
| Possible cause |

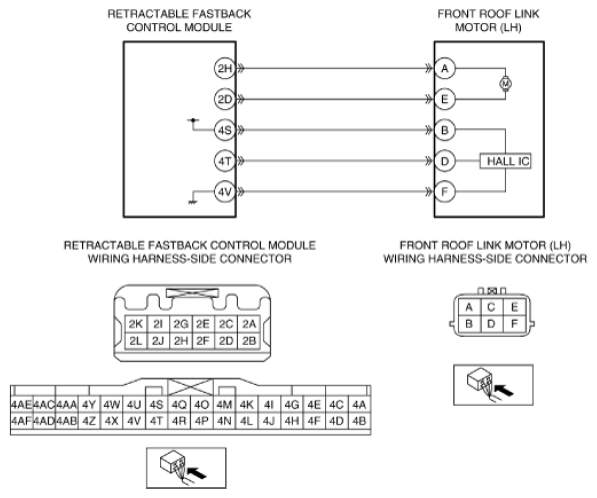

- Short to power supply in wiring harness between retractable fastback control module terminal 2H and front roof link motor (LH) terminal A
- Short to power supply in wiring harness between retractable fastback control module terminal 2D and front roof link motor (LH) terminal E
- Retractable fastback control module malfunction
- Front roof link motor (LH) malfunction
|
|
|
